Description

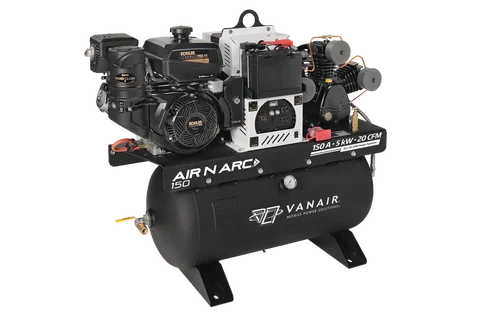

The Air N Arc 150 Air Compressor is a versatile all-in-one power system designed to meet your air compression needs. With its 30-gallon storage tank, this unit ensures a continuous air supply for various applications, from powering tools to inflating tires. Built for efficiency and durability, the Air N Arc compressor delivers reliable performance in both professional and DIY settings. Its compact design makes it easy to transport, while its robust construction guarantees longevity. This compressor is perfect for workshops, garages, and home use, providing the power and reliability you need to get the job done efficiently.
Special Features:
- Fuel System can be Integrated with the Chassis
- Powder Coated Sheet Metal for Protection
- 100% Duty High Frequency Welder Offering Excellent Weld Characteristics
- Galvannealed Steel Metal
- Heavy Duty Belt Driven System for Anti-Vibration and Long Service Intervals
Specifications:
- Engine | 14 HP Kohler
- Compressor Type | Reciprocating
- CFM Rating | 20 CFM
- Max Pressure | 150 PSI
- Generator Wattage | 5 kW Peak, 4.2 KW Continuous, AC Power, 60HZ, Single Phase 120V/240V Outlets
- Welder | 14 HP Stand-alone CC | 40-190 AMPs Operating Range
- Air Storage Capacity | Integrated 30 Gallon Tank
- Drive System | Belt Driven
- Fuel Capacity | Kohler 14 HP: 1.9 Gallon
- Platform dimensions for Skid Mount with fittings (In.) | 48.2L x 22.2W x 40.8H*
Air Compressor:
- Reciprocating Compressor
- Cast Iron Air Pump with Three Cylinder Head Design for Better Cooling
Welder:
- Patented Amperage and Power Controls Built Into Welding Lead for Ease of Use for 14 HP Units and 19 HP Stand Alond Machines
- 100% Variable Completely Controllable. No Preset Setting
- Independent Welding Generator
- CV on Remote Panel Machines
- Safe Multi-Function
- Auto Throttle Control
Generator:
- True Two Generator System for Safe Multi-Functioning of Welder and Electric Tools
- Independent AC Power for Safe Multi-Functioning
- Brushless Design
- Smooth Wave for Minimal Distortion
- Two 120V Outkets and One 240V Outlet Provided
Options and Accessories:
- California CARB Compliance Kit (fuel vapor carbon canister) # 032851
- Optional Weld Cable Set 25′ 1/0 # 033020-25
- Optional Weld Cable Set 50′ 1/0 # 033020-50
- Weld Cable Reel, Manual Rewind w/ 50′ Leads, 400 AMP # 033136
- Weld Cable Reel, Spring Forward w/ 50′ Leads, 400 AMP # 033137
- Optional Battery Boost Cables – 20′ (four gauge with quick connect ends) # MA36223
Cold Weather Kits:
- Cold Weather Kit 12V (Compressor Oil and Engine oil pan heater*) # 032793
- Cold Weather Kit 120V AC (Compressor Oil and Engine oil pan heater*) # 032927
*Installed at time of machine build. Note 12V kit utilizes chassis battery
Standard Service Kits and Oil
- Compressor Service Kit (three air filters and Vanguard oil) # KIT1156
- Engine Service Kit, Kohler 14 HP (one quart oil, air filter and pre-filter) # KIT1158
- Vanguard Reciprocating Compressor Oil (one gallon) # 271856-1GAL
- Vanguard Reciprocating Compressor Oil (one quart) # 271856-1QT
