Description

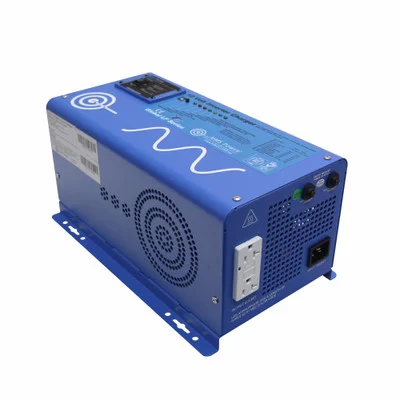

AIMS Power PICOGLF15W12V120VR 1500 Watt Pure Sine Inverter Charger delivers dependable power conversion for home and off-grid applications. Designed for efficiency, it provides 1500 watts of continuous power with a surge capability of 4500 watts, making it ideal for handling various electrical loads. The built-in multi-stage smart charger ensures safe and optimized battery charging, while the battery priority selector allows users to customize power usage. Its rugged marine-coated design protects against environmental elements, making it a reliable choice for demanding conditions. With an auto generator start feature and optional remote panel, this inverter charger offers seamless and user-friendly operation.
Features:
- 1500-watt continuous power output.
- 4500-watt surge capacity for 20 seconds.
- Pure sine wave output ensures compatibility with sensitive electronics.
- Multi-stage smart charger for efficient battery management.
- Battery priority selector for customized energy usage.
- Auto generator start capability for backup power automation.
- Optional remote panel for convenient control.
- Marine-coated design for enhanced durability in harsh environments.
- High efficiency in both inverter and line modes.
Benefits:
- Provides stable and clean power for home and off-grid applications.
- Handles high startup loads with superior surge capacity.
- Enhances battery life with intelligent charging profiles.
- Minimizes energy consumption with power saver mode.
- Ensures seamless transitions between battery and AC power.
- Built for durability, ideal for rugged outdoor use.
Technical Specifications:
- Model: PICOGLF15W12V120VR
- Continuous Output Power: 1500 Watts
- Surge Rating: 4500 Watts (20 Seconds)
- Output Waveform: Pure Sine/Same as Input (Bypass Mode)
- Output Voltage: 100-110-120 Vac
- Nominal Efficiency:88% (Peak)
- Line Mode Efficiency:95%
- Output Frequency: 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
- Typical Transfer Time: 10ms (Max)
- THD: <10>
- Nominal Input Voltage: 12.0Vdc
- Minimum Start Voltage: 10.0Vdc
- Low Battery Alarm: 10.5Vdc-11.0Vdc
- Low Battery Trip: 10.0Vdc-10.5Vdc
- High Voltage Alarm: 16.0Vdc
- Idle Consumption: 4 amps DC
- Power Saver Mode Idle Consumption: <1>
- Charger Rate: 50A
- Unit Weight: 33 lbs.
- Unit Dimensions (L x W x H): 23.54 x 8.59 x 7.05 inches
- Shipping Weight: 42 lbs.
- Shipping Dimensions (L x W x H): 29.13 x 12.40 x 11.81 inches
